Three-Axis Gyro Accelerometer Integrated Inertial Measurement Unit with RS422 Output

Brand Name : Firepower

Model Number : IMU6-1

Place of Origin : China

MOQ : 1

Price : 2000$

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 500/month

Delivery Time : 1 Week for sample

Packaging Details : BOX+Sponge

Gyro Measuring range : ±400°/s

In-Run Bias Stability : 0.3°/h

Angular Random Walk : 0.15º/√h

Bias repeatability (1σ ) : 1°/h

Scale Factor Non-Linearity(1σ ) : 150ppm

3 dB Bandwidth : 250Hz

Accelerometer bias stability : 0.02mg

Weight : 55g

Contact Now

Three-Axis Gyro Accelerometer Integrated Inertial Measurement Unit with RS422 Output
Key Specifications
Gyro Measuring range ±400°/s
In-Run Bias Stability 0.3°/h
Angular Random Walk 0.15º/√h
Bias repeatability (1σ) 1°/h
Scale Factor Non-Linearity (1σ) 150ppm
3 dB Bandwidth 250Hz
Accelerometer bias stability 0.02mg
Weight 55g
Product Overview

The IMU6 MEMS Inertial Measurement Unit is a high-performance sensor module integrating:

  • Three-axis gyroscope
  • Three-axis accelerometer
  • Three-axis inclination angle sensor
  • Temperature sensor
  • Signal processing board
  • Mechanical structure
  • Embedded software

It provides real-time measurement of three-axis angular velocity, linear acceleration, and inclination angles with comprehensive error compensation including temperature compensation, installation misalignment angle correction, and nonlinearity correction.

Technical Specifications
Gyroscope Specifications
Parameter Unit IMU6-1 IMU6-1A IMU6-1B IMU6-1C
Measuring range (customizable) °/s ±400 ±400 ±400 ±2000
In-Run Bias Stability(@ Allan variance) °/h 0.3 0.1 0.05 1
Bias stability @10s (10s smooth, 1σ, room temperature) °/h 3 1 0.5 6
Bias stability in full temperature °/h 10 3 2 18
Angular Random Walk °√h 0.15 0.1 0.02 0.3
Accelerometer Technical Indicators
Parameter Unit IMU6-1y-1 IMU6-1y-2 IMU6-1y-3 IMU6-1y-4
Measuring range (customizable) g ±10 ±30 ±50 ±80
In-Run Bias Stability (Allan Variance @ 25 ℃) mg 0.02 0.05 0.1 0.2
Bias stability @10s mg 0.05 0.2 0.5 1
Bias stability in full temperature mg 1 3 5 15
Electrical Characteristics
Voltage V 5
Power consumption W 2
Ripple mV 100
Environmental Adaptability
Operating temperature ℃ -45~85
Storage temperature ℃ -55~105
Vibration -- 10~2000Hz,6.06g
Impact -- 1000g,0.1ms
Weight g 55±5

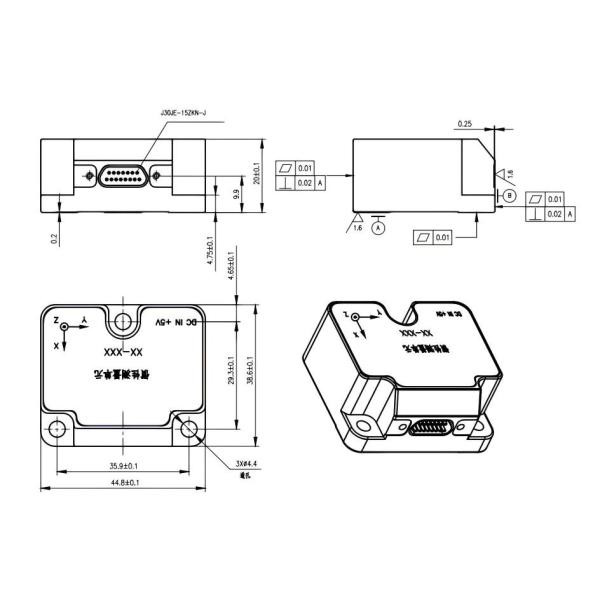

Outline Structure
Three-Axis Gyro Accelerometer Integrated Inertial Measurement Unit with RS422 Output
